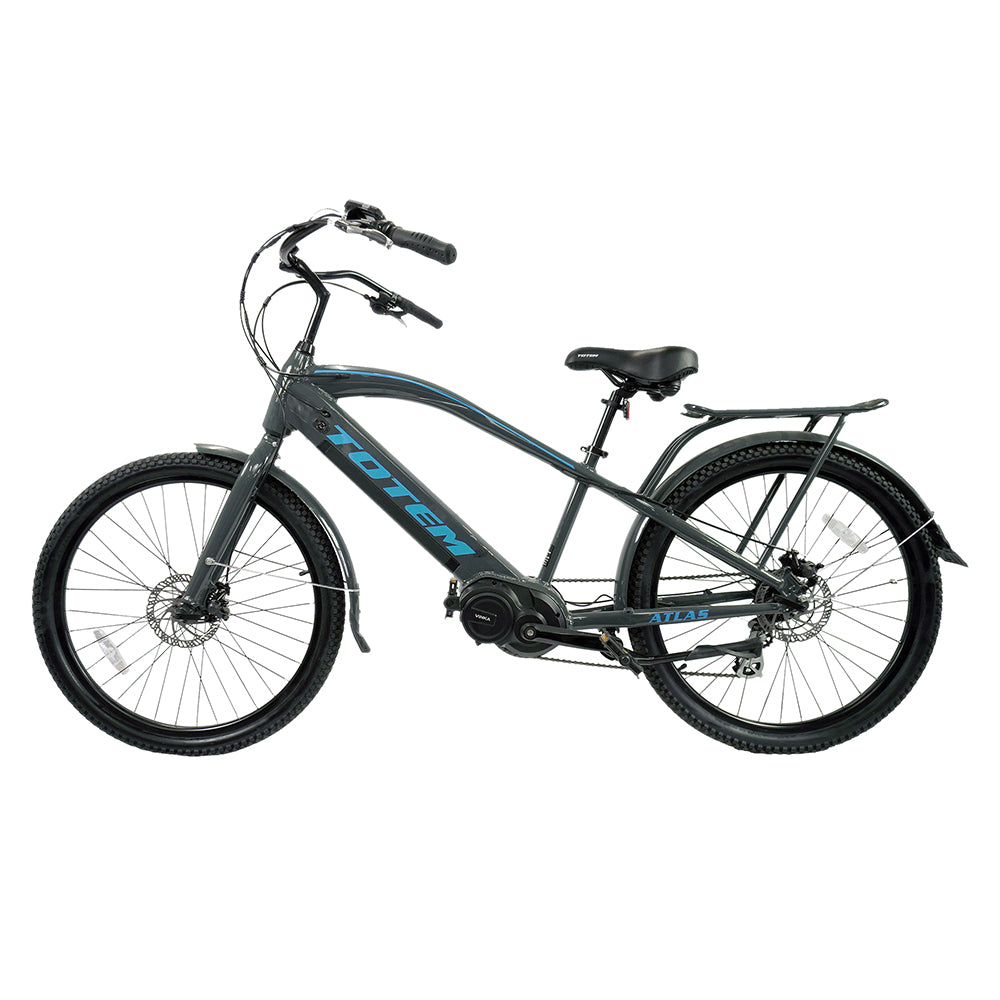

Totem Atlas Electric Cruiser Bike
Couldn't load pickup availability

What's in the box
What's in the box
Ebike(Arrived 85% Assembled), Battery(packed and shipped in a separate shipment), Charger, Instruction Manual, Installation Tools






What’s the range?
50-75 Miles
What’s the top speed?
Up to 20 MPH
How long can be fully charged?
4-6 Hours
How powerful is the motor?
350W VINKA Motor





Samsung Removable Battery

This sleekly down-tube integrated 48V 14Ah Samsung/LG Lithium-Ion battery is completely removable and easy to carry with anti-theft security key, quick-charged fully in 4-6 hours with the same proven battery management as electric cars.

7-Speed Shift Gears

The Shimano 7-speed derailleur system flatten the slopes in a flick. Along with the pedal-assist system, you can cruise at the most suitable speed joyfully.

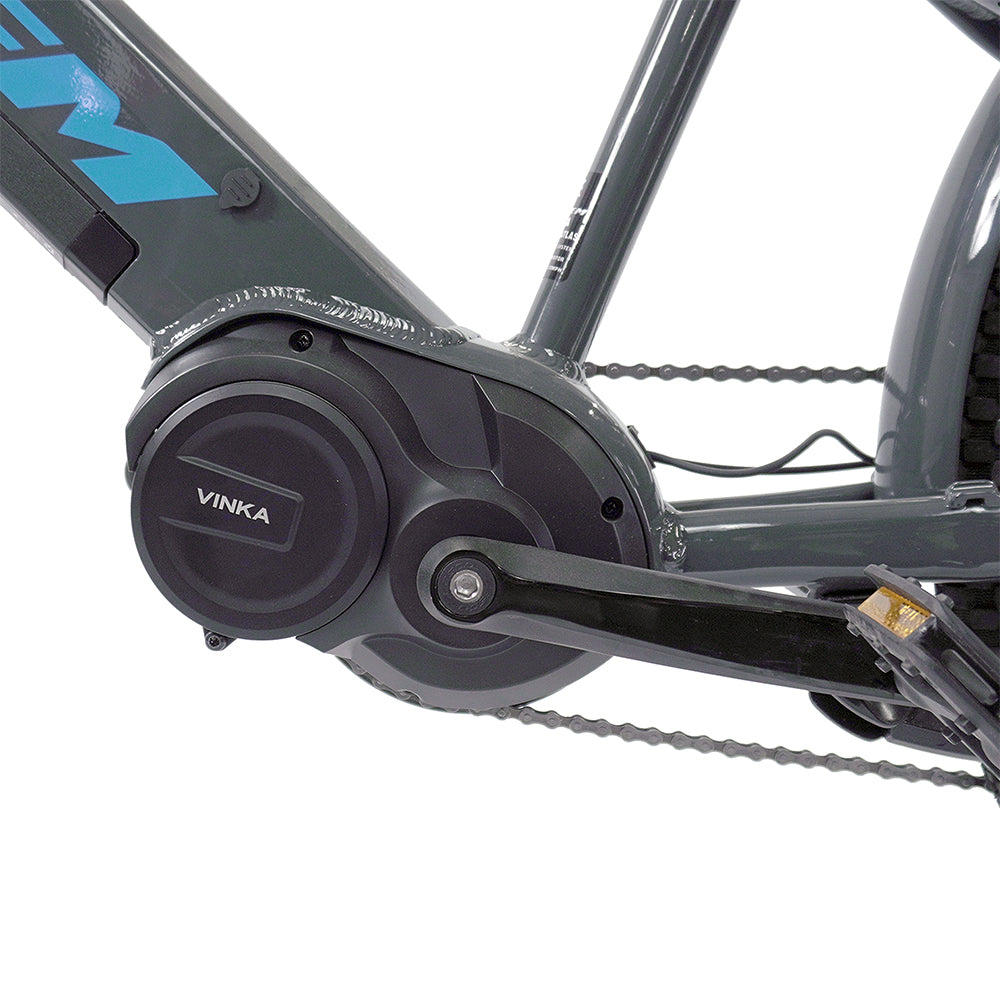

350W Center-Drive Motor

This VINKA 350W center-drive motor’s responsive torque curve delivers whisper power to your pedals, perfectly in-tune with your normal riding cadence and leaves no resistance in pure riding.

LCD Display- 4 Riding Modes

IP65 rated DS20 LCD with adjustable backlight, displays current speed, boost level, total odometer, trip odometer, and pedaling cadence. The 4 riding modes includes throttle mode, 5-level pedal assist mode, walk assist mode, and traditional riding mode.

Adjustable Seatpost
Adjust the seat height to fit your body for the most comfortable riding.

Front & Rear Fenders
Just ride anywhere you want, because the all-inclusive front and rear fenders will shield rain or mud away, and keep yourself dry and clean all day.

Welded Rear Rack
The integrated rear rack holds up to 27 kilograms/60 lbs, where you can also bring the kids along for a “weeee” ride.

Wide Saddle
Superior comfort through the oversized ergonomic design. Feel secure and enjoyable in the long ride.

Dual Disc Brake
Tektro’s disc brakes provide responsive stopping power in all conditions, with reduced wear and tear, and better safety.

2.3” Trusted Tires
26” x 2.3” Kenda Cruising Tires 2.3” tires can easily stand up to any road, with the anti-skid, wear-resistant, and strong grip qualities.
- Each Totem E-bike has a level 0 safety device that puts the entire bike in a "pedal only" mode with no power. The motor only activated by pedal when the rider increases the displayed assist level to a higher level.
- Brake Sensor – Disengages the motor when brakes are applied, providing an intuitive cycling experience for all riders
- Overheat Protection – Disengages the motor to protect the drive system when sustained temperatures exceed 110 degrees Fahrenheit
- Throttle Protection – Momentarily disengages the throttle after 60 seconds of continuous use to protect the drive system from sustained high current output
- Battery Management System (BMS) + Over-current Protection – The battery’s internal chip is designed to self-regulate “sleep mode” when not in use for extended periods, prolonging usable battery life and protecting against over-current events
- Self-diagnosing Error Code messages – smart controller diagnoses drive system status and displays a numbered code to pinpoint areas for troubleshooting
MODEL | Atlas |
---|---|
MOTOR | 48V 350W Center Motor |
RIDING MODE | Throttle mode, Pedal Assist, Walk Assist, Traditional Pedaling |
DISPLAY | LCD Smart Easy Read Display with Backlight |
SPEED LIMIT | Up to 20 MPH |
BATTERY | Removable Internal Lithium-ion 48V,14AH,Samsung 18650 cells |
SENSORS | Cadence Sensor, Speed Sensor |
PEDAL ASSIST | 5 Levels |
CHARGER | 48V 2 Amp Charger |
RANGE | 50-75 Miles |
FRAME | 26"*15.5" 6061 Aluminum |
FORK | Alloy Fork |
BOTTOM BRACKET | Square Taper, Sealed |
CRANKSET | 42T*170mm |
BRAKES | Tektro Font & Rear Mechanical Disc Brakes |
REAR DERAILLEUR | SHIMANO 7-SPEED |
CASSETTE | SHIMANO 14-28T 7-SPEED |
SHIFT LEVER | SHIMANO 7-SPEED |
CHAIN | KMC 7-SPEED |
RIM | Double Wall Aluminum 36h Front & Rear |
SPOKES | Black Stainless 14 Gauge Front/Rear |
HUBS | 36H Disc Front and Rear |
TIRES | KENDA 26"*2.3",Ebike Rated |
SEATPOST | Adjustable,Alloy, ∮27.2mm*300mm |
HEADSET | Sealed Bearing Headset |
SEAT CLAMP | Quick Release |
HANDLEBARS | ZOOM 22.2mm*2.0T*700mm, H=135mm,Alloy |
GRIPS | Ergonomic Comfort |
STEM | 28.6mm,Alloy |
MOTOR 48V 350W Center Motor | RIDING MODE Throttle mode, Pedal Assist, Walk Assist, Traditional Pedaling | DISPLAY LCD Smart Easy Read Display with Backlight |
---|---|---|
SPEED LIMIT Up to 20 MPH | BATTERY Removable Internal Lithium-ion 48V,14AH,Samsung 18650 cells | SENSORS Cadence Sensor, Speed Sensor |
PEDAL ASSIST 5 Levels | CHARGER 48V 2 Amp Charger | RANGE 50-75 Miles |
FRAME 26"*15.5" 6061 Aluminum | CARRIER WEIGHT LIMIT 55lbs | PEDALS 9/16" |
WEIGHT LIMIT Ebike Maximum Payload Capacity: 300 lbs Carrier Maximum Payload Capacity limit is 55lbs | FORK Alloy Fork | BOTTOM BRACKET Square Taper, Sealed |
CRANKSET 42T*170mm | BRAKES Tektro Font & Rear Mechanical Disc Brakes | REAR DERAILLEUR SHIMANO 7-SPEED |
CASSETTE SHIMANO 14-28T 7-SPEED | SHIFT LEVER SHIMANO 7-SPEED | CHAIN KMC 7-SPEED |
RIM Double Wall Aluminum 36h Front & Rear | SPOKES Black Stainless 14 Gauge Front/Rear | TUBES 26"*2.3" |
HUBS 36H Disc Front and Rear | TIRES KENDA 26"*2.3",Ebike Rated | SADDLE TOTEM |
SEATPOST Adjustable,Alloy,∮27.2mm*300mm | HEADSET Sealed Bearing Headset | SEAT CLAMP Quick Release |
HANDLEBARS ZOOM 22.2mm*2.0T*700mm,H=135mm,Alloy | GRIPS Ergonomic Comfort | STEM 28.6mm,Alloy |
Atlas | Table header 1 |
---|---|
A: Handlebar height | 43" |
B: Stand over height | 31" |
C: Seat tube | 16" |
D: Reach | 19" |
E: Wheelbase | 50" |
F: Total Length | 78" |
