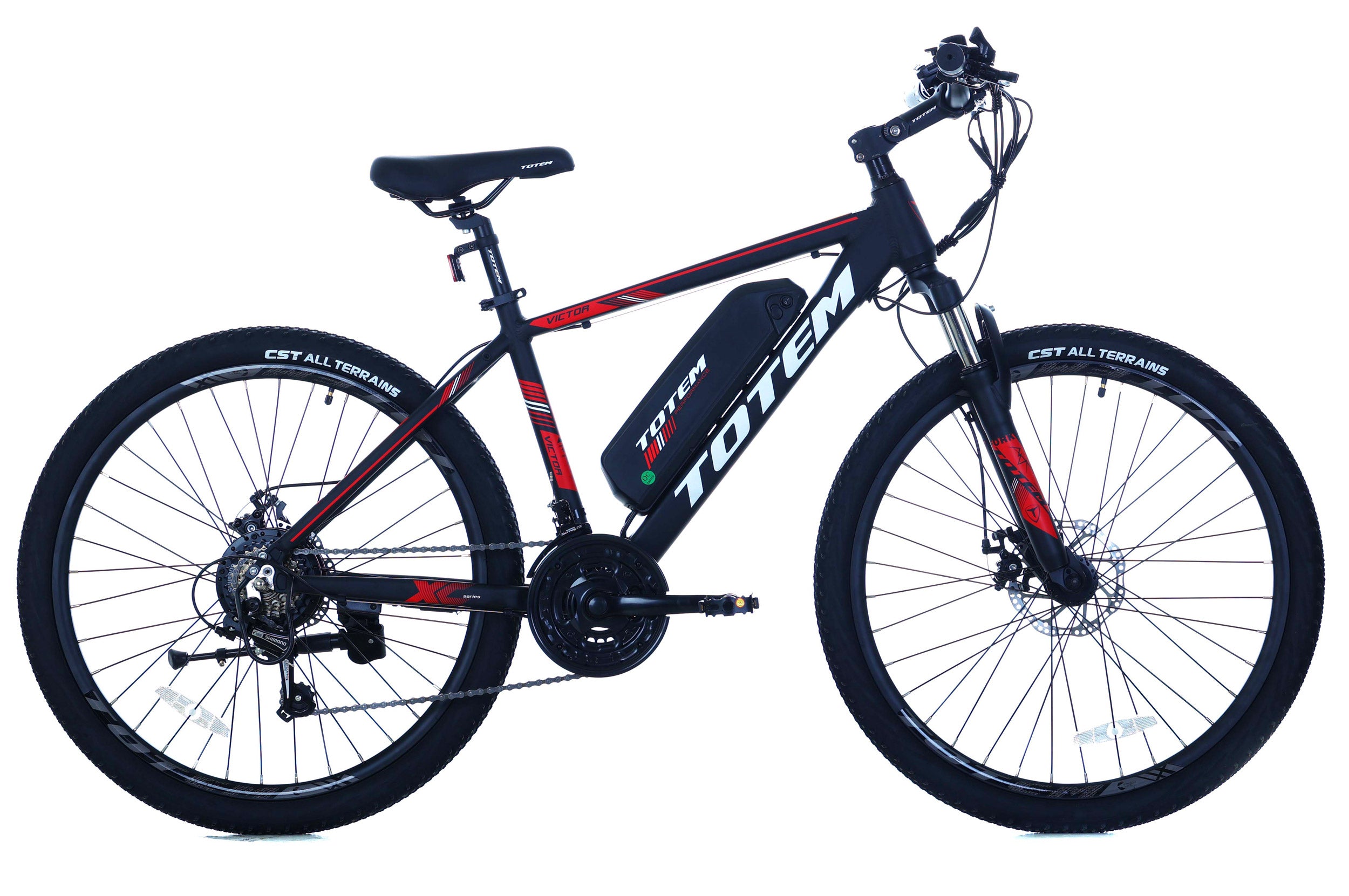

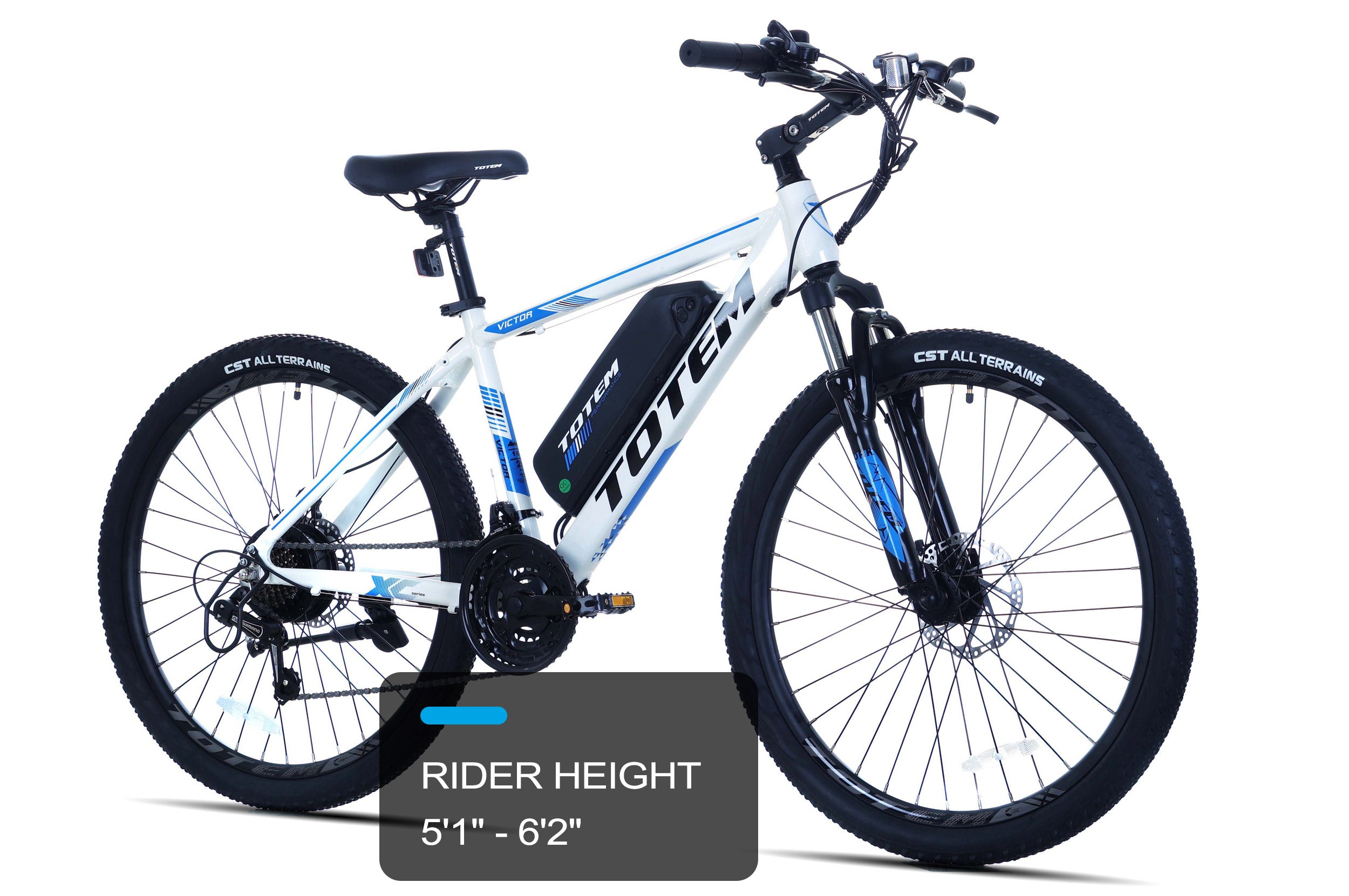

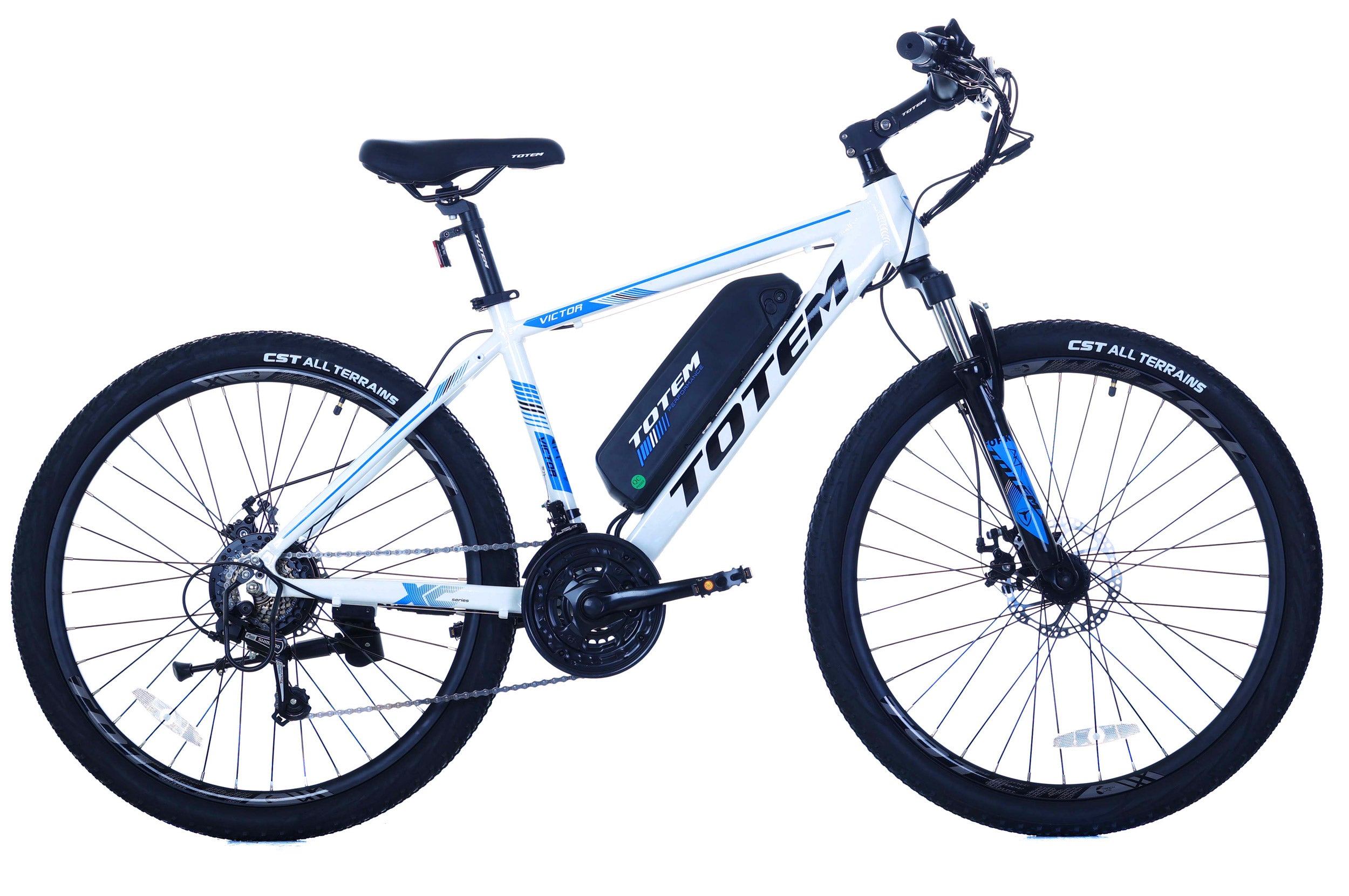

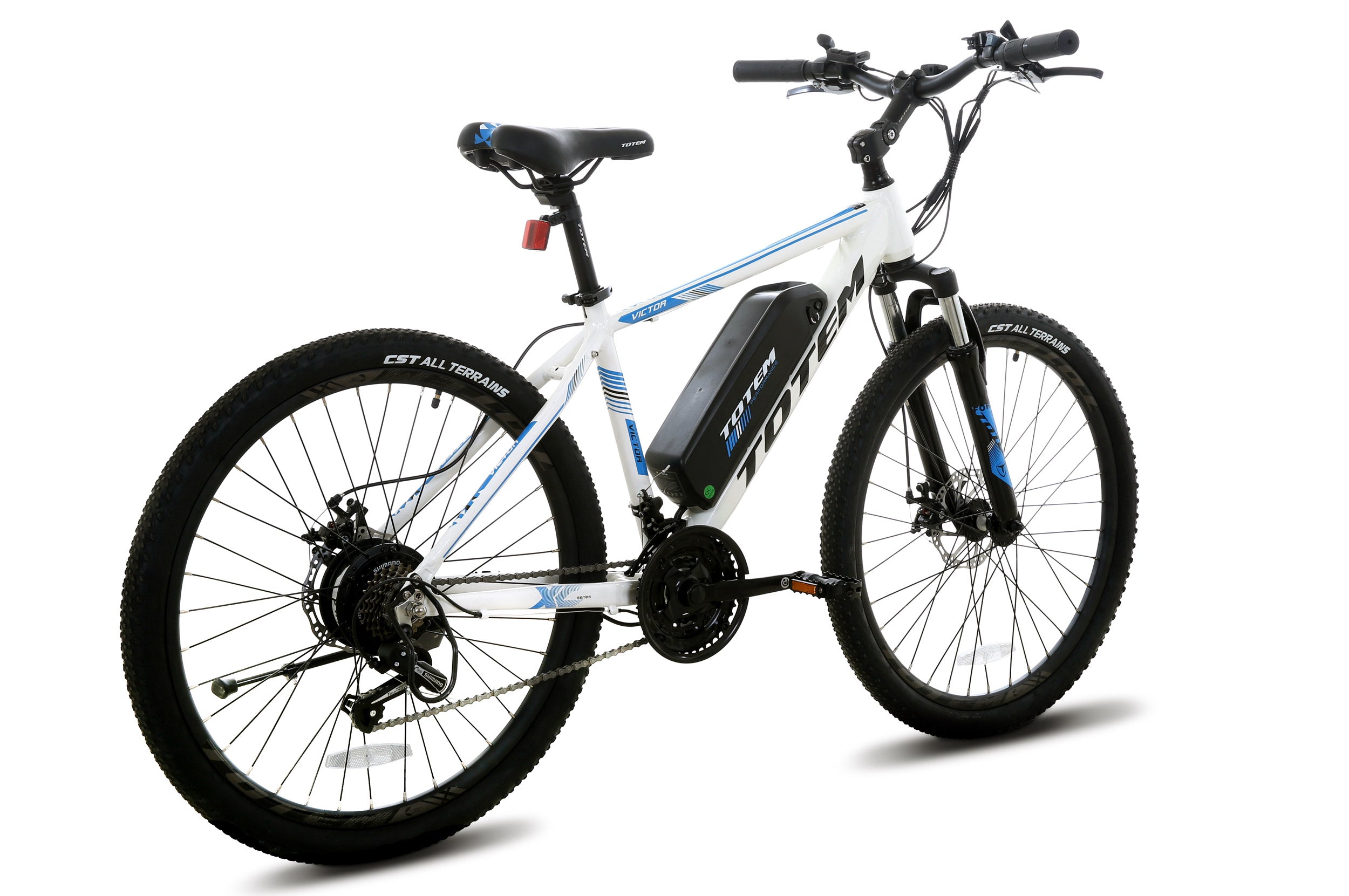

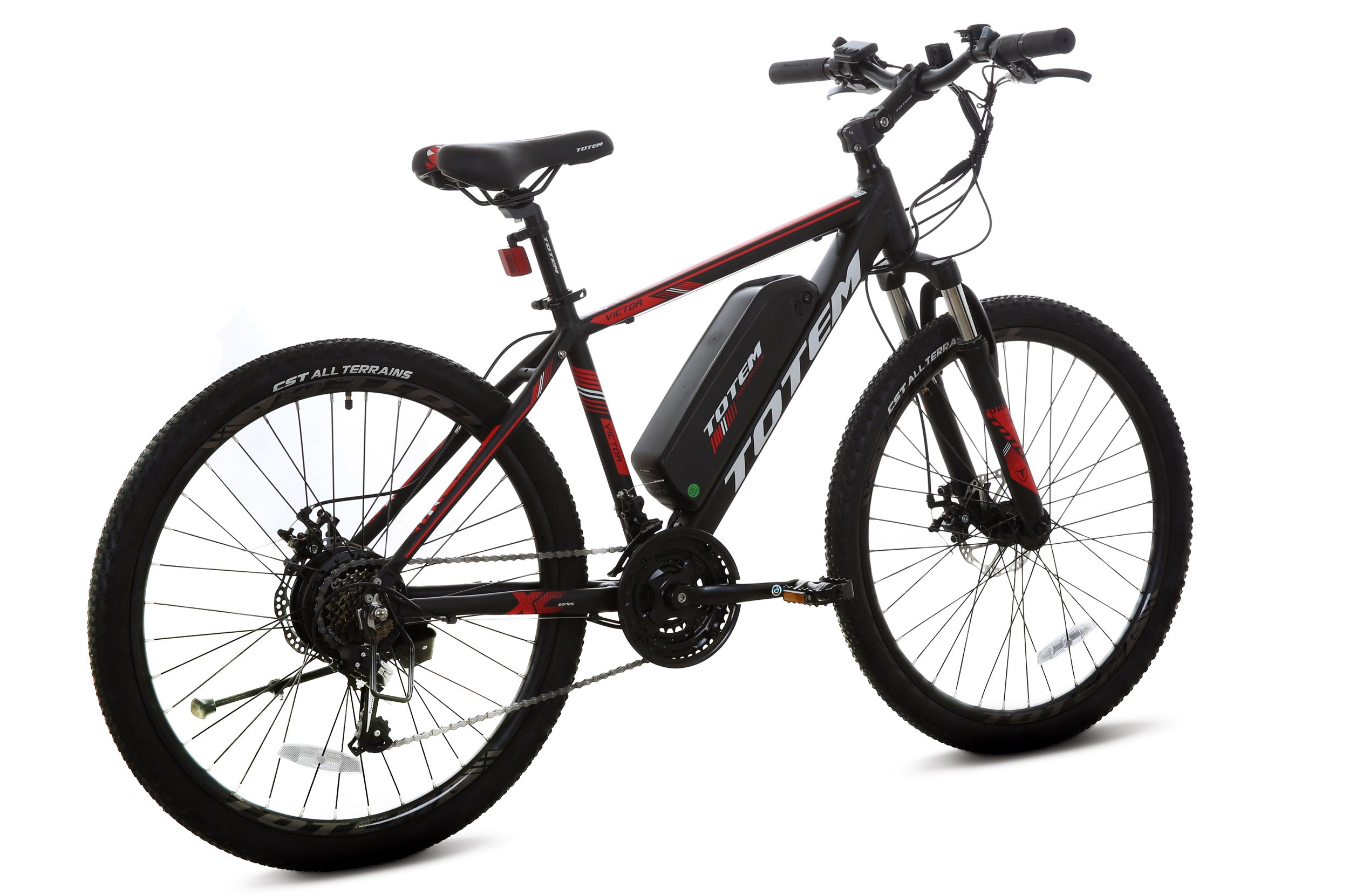

Totem Victor 2.0 Electric Mountain Bike

350 W

Geared Hub Motor

36 V 10.4 Ah

Battery

26x1.95 "

Hybrid Tire

20 MPH

Top Speed

55 Nm

Torque

20-40 Miles

Range

UL Certified

Safety

250 Lb

Max Load

Model	VICTOR
MOTOR	36V 350w Brushless Rear Hub Motor
RIDING MODE	Throttle mode, Pedal Assist, Traditional Pedaling
DISPLAY	LCD Smart Display with Easy Read Backlight
SPEED LIMIT	Up to 20 MPH on Pedal Assist
BATTERY	Removable Lithium-ion 36V, 10.4Ah, 18650 cells
SENSORS	Cadence Sensor, Speed Sensor
PEDAL ASSIST	5 Levels
CHARGER	36V 3Amp Fast Charger
RANGE	20-40 Miles Per Charge
FRAME	26" * 16.5" 6061 Aluminum
FORK	Suspension Fork
BOTTOM BRACKET	Square Taper, Sealed
CRANKSET	1/23/32" 24T34T42T*170mm
BRAKES	Front & Rear Mechanical Disc Brakes
REAR DERAILLEUR	SHIMANO 21-SPEED
CASSETTE	SHIMANO 14-28T 7-SPEED
SHIFT LEVER	SHIMANO TX30 21-SPEED
CHAIN	KMC 7-SPEED
RIM	Double Wall Aluminum 36h Front & Rear
SPOKES	Black Stainless 13 Gauge Front/Rear
HUBS	JOY 36H Disc Front & Rear
TIRES	CST 26*1.95, Ebike Rated
SEATPOST	Alloy, ∮27.2mm* 300mm, 2.0T
HEADSET	Sealed Bearing Headset
SEAT CLAMP	Quick Release
HANDLEBARS	22.2mm1.8T620mm, H=30mm, Steel
GRIPS	Ergonomic Comfort
STEM	Adjustable 31.8mm, Alloy
BIKE NET WEIGHT	40.4LB (Battery not included)
BIKE WEIGHT	46LB (Battery included)
BATTERY WEIGHT	5.6LB

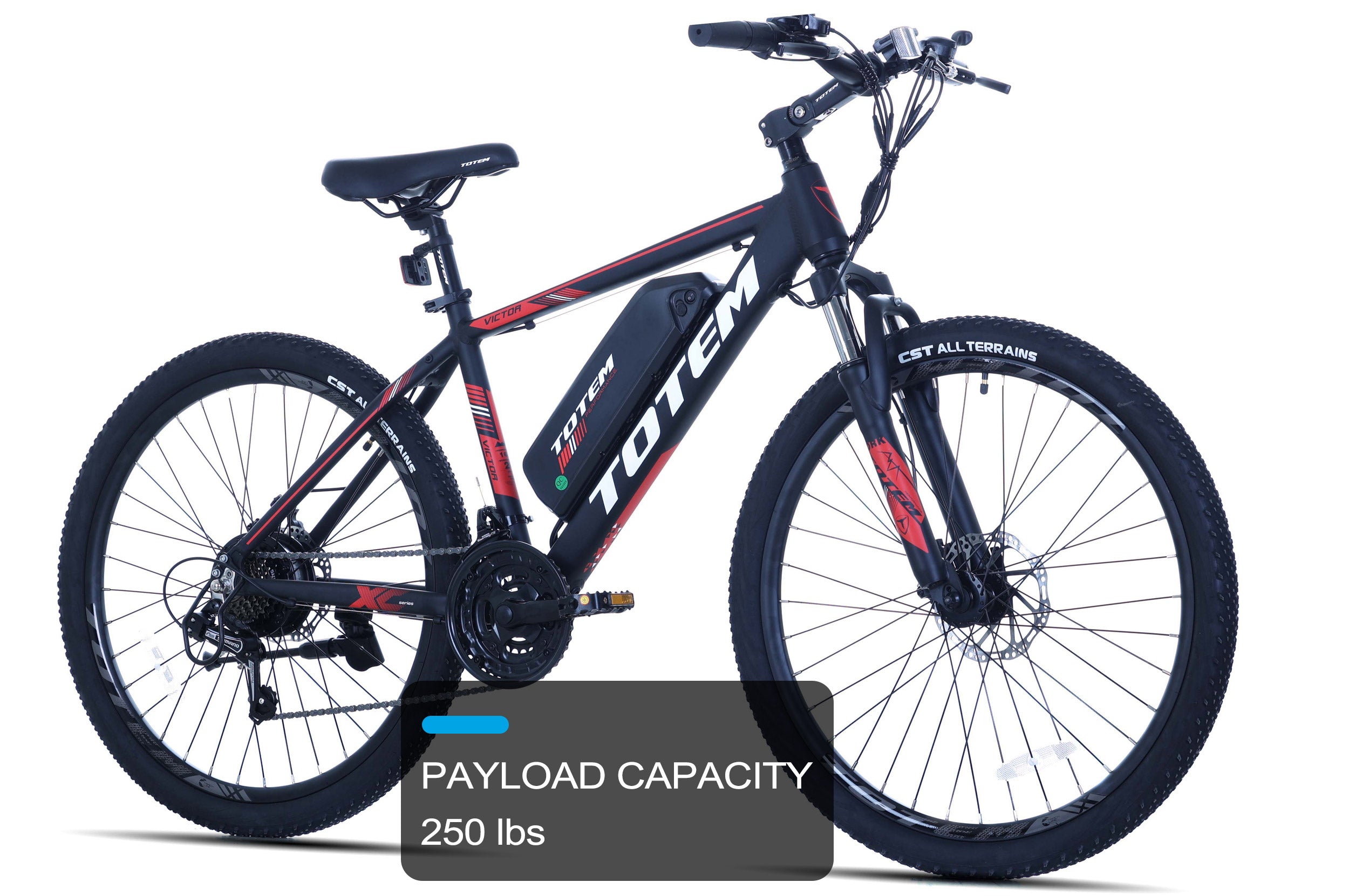

PAYLOAD CAPACITY	250LB

MOTOR 36V, 350w Brushless Rear Hub Motor	RIDING MODE Throttle mode, Pedal Assist, Traditional Pedaling	DISPLAY LCD Smart Easy Read Display with Backlight
SPEED LIMIT Up to 20 MPH	BATTERY Removable Lithium-ion 36V，10.4AH,18650 cells	SENSORS Cadence Sensor, Speed Sensor
PEDAL ASSIST 5 Levels	CHARGER 36V 3 Amp Fast Charger	RANGE 20-40 Miles Per Charge
FRAME 26"*16.5" 6061 Aluminum	STEM Adjustable 31.8mm,Alloy	PEDALS 9/16"
SADDLE TOTEM	FORK SUSPENSION FORK	BOTTOM BRACKET Square Taper, Sealed
CRANKSET 1/23/32"24T34T42T*170mm	BRAKES Front & Rear Mechanical Disc Brakes	REAR DERAILLEUR SHIMANO 21-SPEED
CASSETTE SHIMANO 14-28T 7-SPEED	SHIFT LEVER SHIMANO TX30 21-SPEED	CHAIN KMC 7-SPEED
RIM Double Wall Aluminum 36h Front & Rear	SPOKES Black Stainless 13 Gauge Front/Rear	TUBES 26*1.95-2.125
HUBS JOY 36H Disc Front and Rear	TIRES CST 26*1.95,Ebike Rated	HANDLEBARS 22.2mm1.8T620mm，H=30mm,Steel
SEATPOST Alloy,∮27.2mm*300mm,2.0T	HEADSET Sealed Bearing Headset	SEAT CLAMP Quick Release
GRIPS Ergonomic Comfort	BIKE NET WEIGHT 40.4LB (Battery not Included)	BIKE WEIGHT 46LB (Battery Included)
BATTERY WEIGHT 5.6LB	PAYLOAD CAPACITY 250LB

Victor: Power Meets Versatility

With a 350W geared hub motor, 36V 10.4Ah battery, and a lightweight 46 lb frame, the Victor offers effortless rides at speeds up to 20 MPH and a range of 20-40 miles. Its 26x1.95” hybrid tires and 55 Nm torque ensure smooth handling and reliable power, whether on city streets or light trails.

IMG_5890.WEBP__PID:492252e2-d05c-4512-9ec7-8c1a7c61f39e

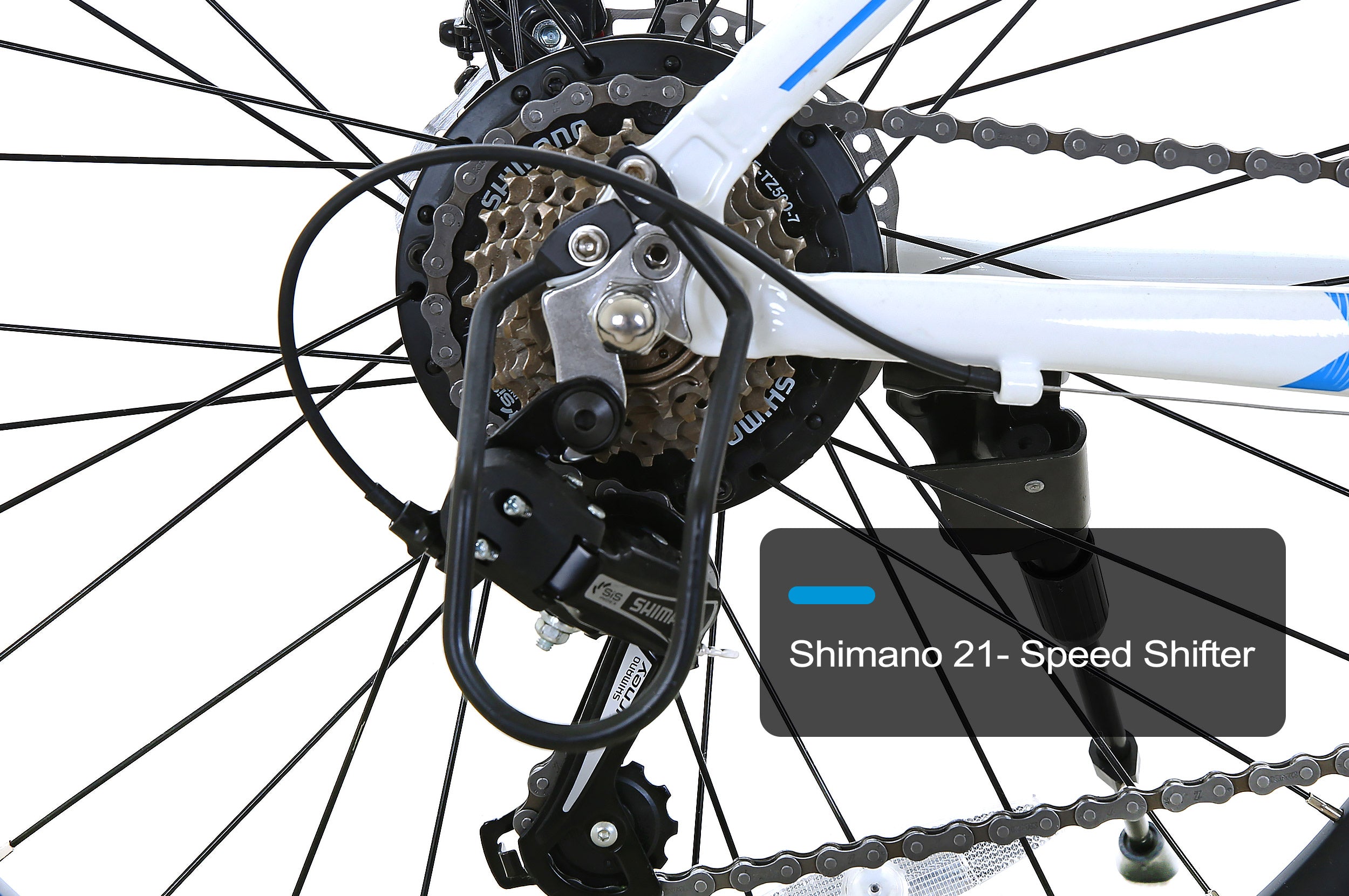

Shimano Smooth Shift Gears

Shimano 21-speed gear with trigger shifters and derailleur provide quick, precise gear changes so you’ll excel in any terrain with exceptional ease.

IMG_5891.WEBP__PID:2252e2d0-5c35-421e-878c-1a7c61f39ec4

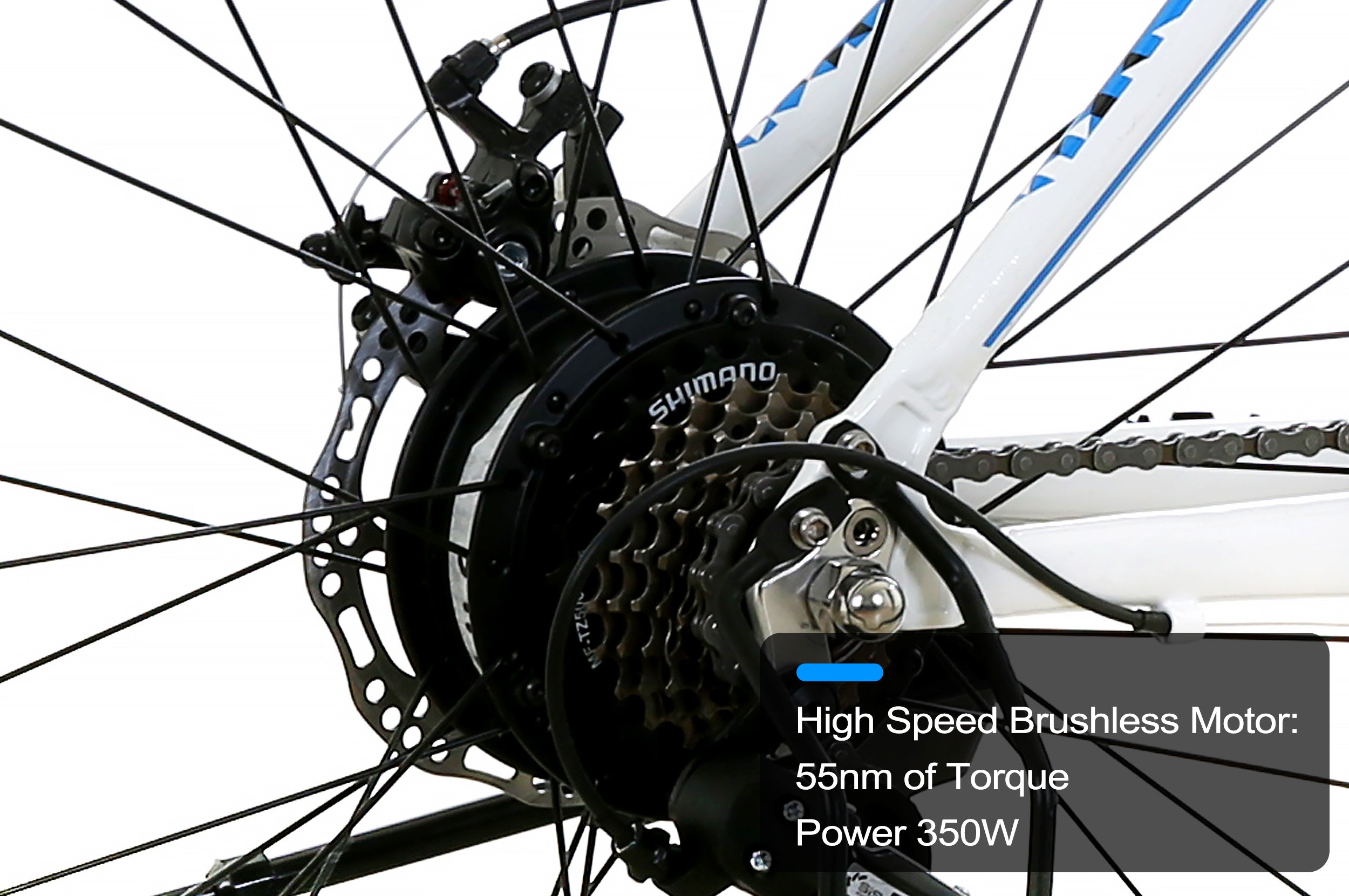

350W Rear Hub Motor

The reliable 350W brushless rear hub motor, gives a responsive torque curve deliver whisper power to your pedals. This makes it perfectly in-tune with your normal riding cadence and leaves no resistance for pure riding.

IMG_5892.WEBP__PID:52e2d05c-3512-4ec7-8c1a-7c61f39ec4bc

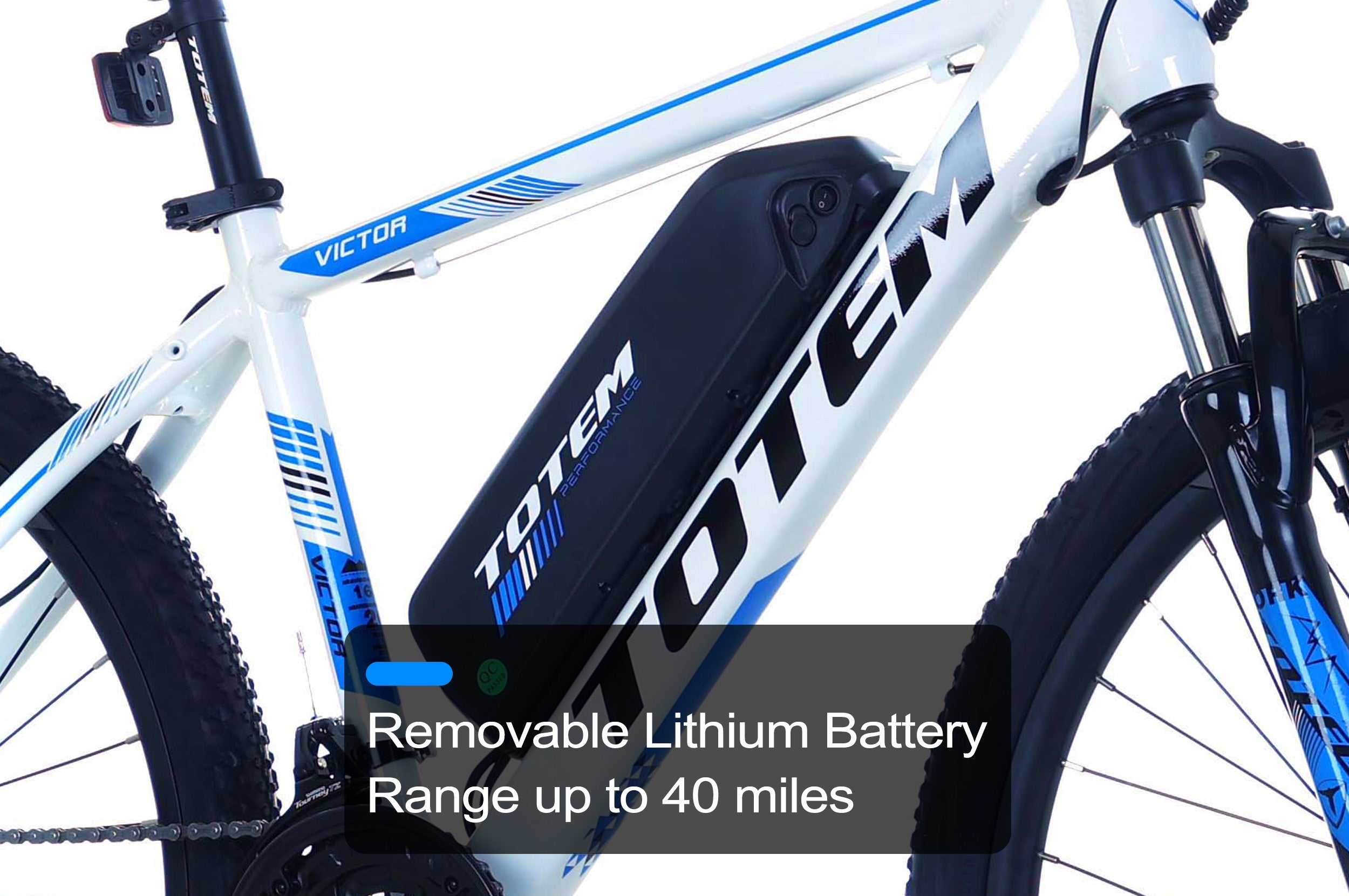

Portable Battery & 2X Faster Charge

The completely removable, easy to carry, and lockable 10.4Ah lithium-ion battery ranges up to 40 miles. Charge 15 mins to get a quick ride of 7 miles, and charge 2-3 hours from 0 to 100% —that’s 2X faster than most other bikes.

IMG_5893.WEBP__PID:e2d05c35-121e-478c-9a7c-61f39ec4bcb6

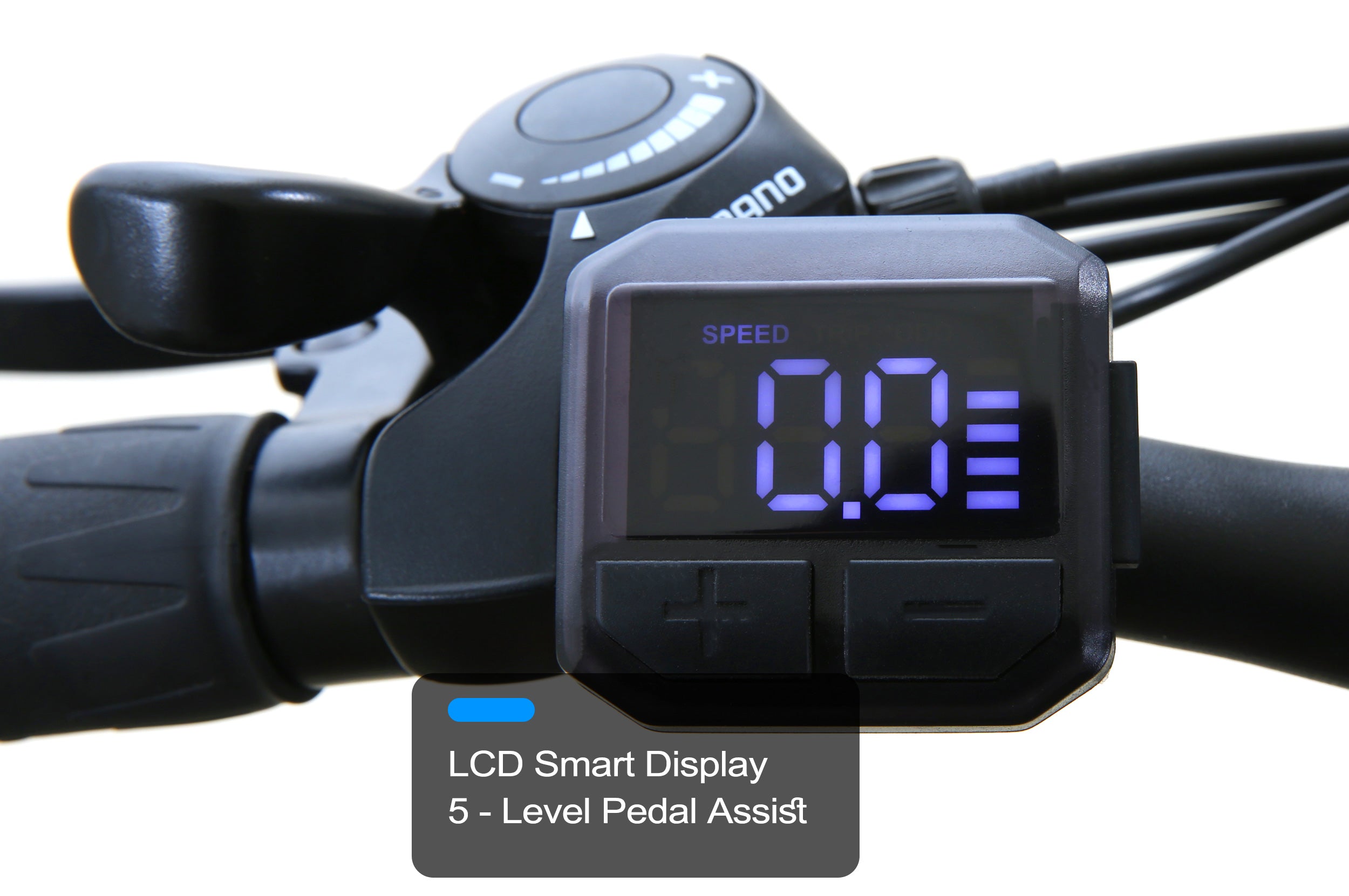

LCD display-3 riding modes

User-friendly LCD display shows current speed, pedal assist level and mileage. Victor kicks in once you start pedaling. Easily change from throttle mode to pedal assist on the fly. The 0th gear level functions like a traditional MTB without resistance.

IMG_5894.WEBP__PID:d05c3512-1ec7-4c1a-bc61-f39ec4bcb6a0

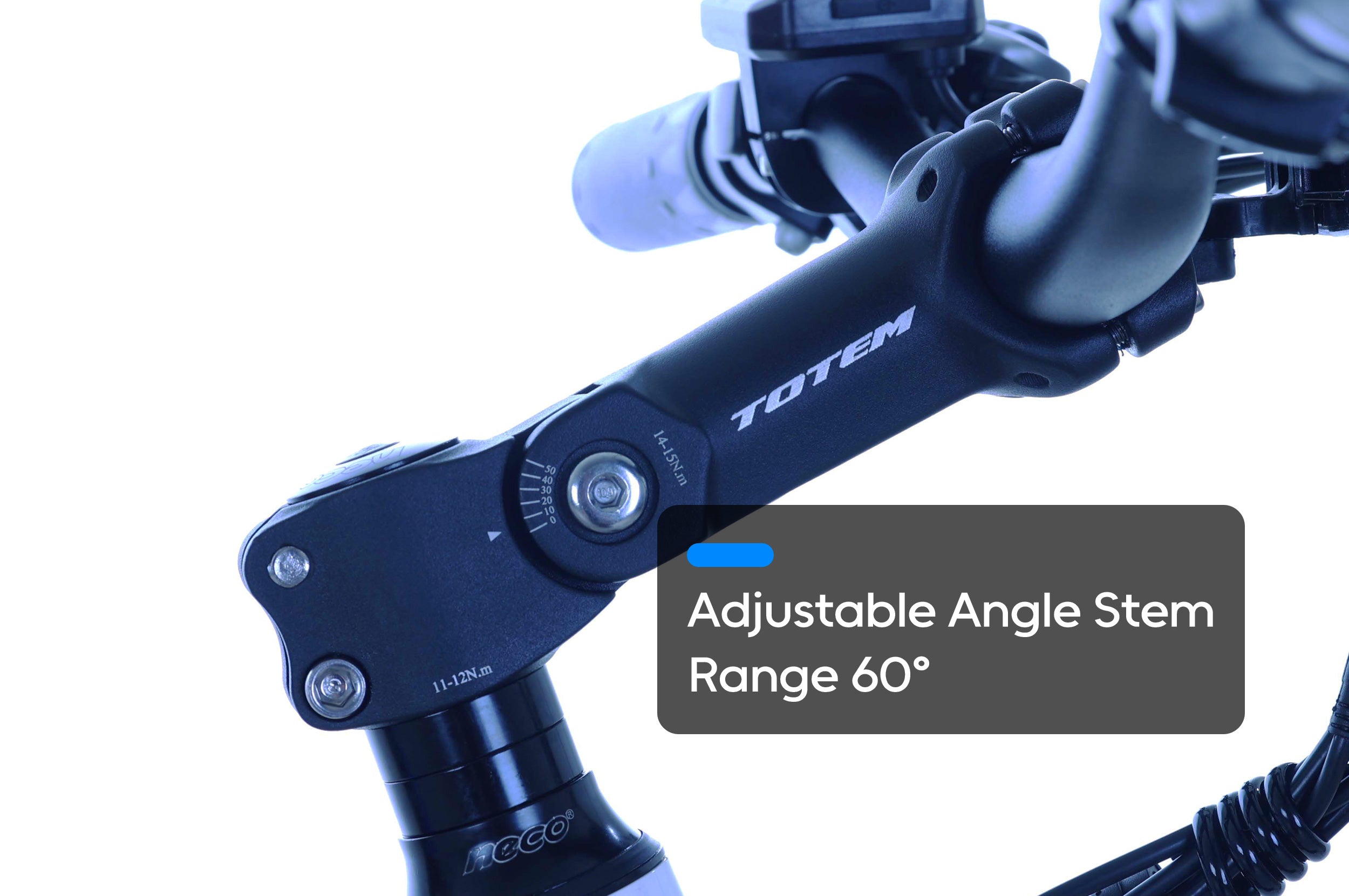

Adjustable Stem

Adjusting the angle of the stem to raise or lower the handlebars for your most comfortable riding position.

IMG_5895.WEBP__PID:5c35121e-c78c-4a7c-a1f3-9ec4bcb6a0c0

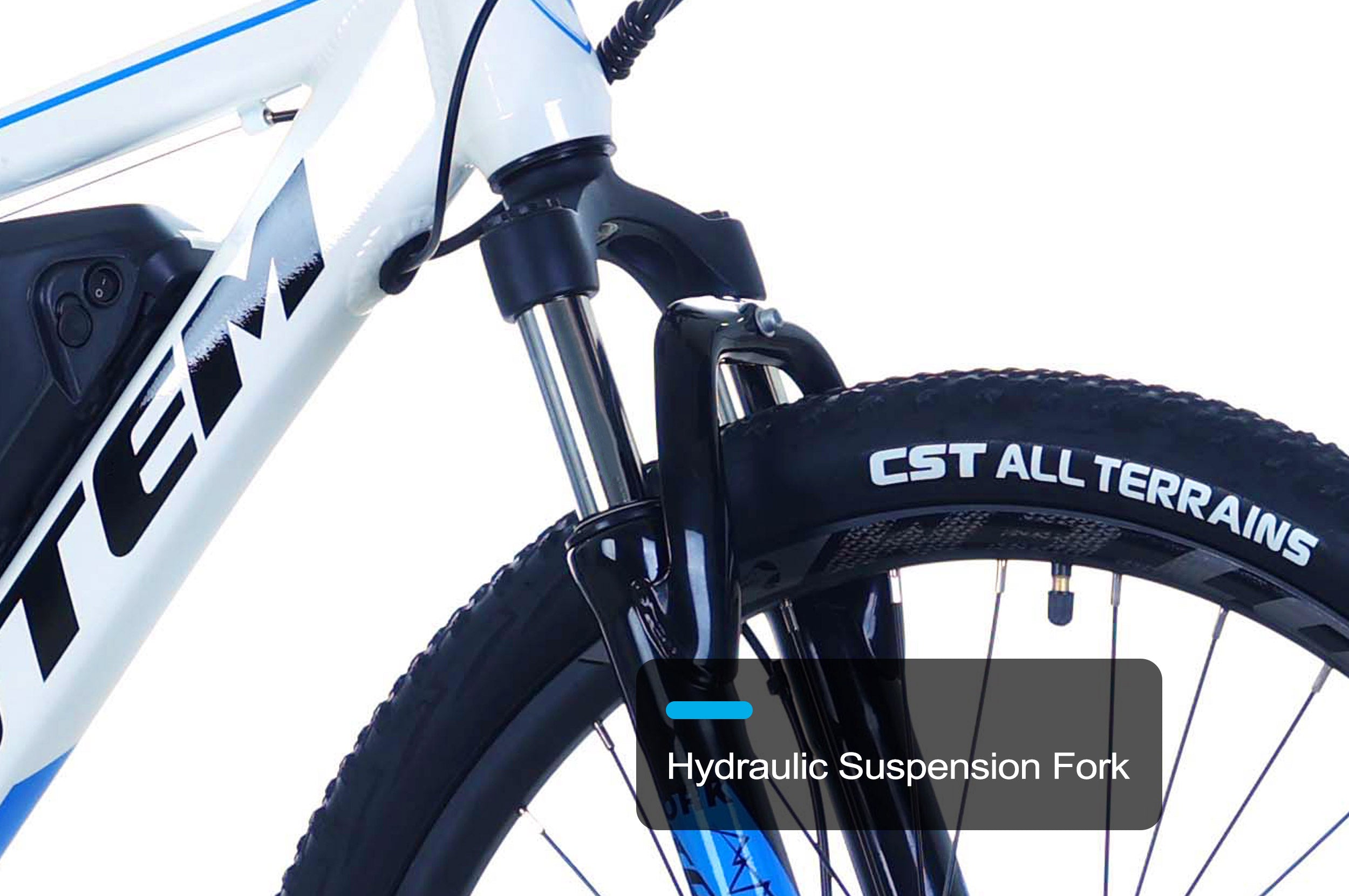

Suspension Fork

Absorbs any shocks along the ride with the durable front-suspension fork, allowing you to confidently maneuver on any terrain.

IMG_5896.WEBP__PID:35121ec7-8c1a-4c61-b39e-c4bcb6a0c02e

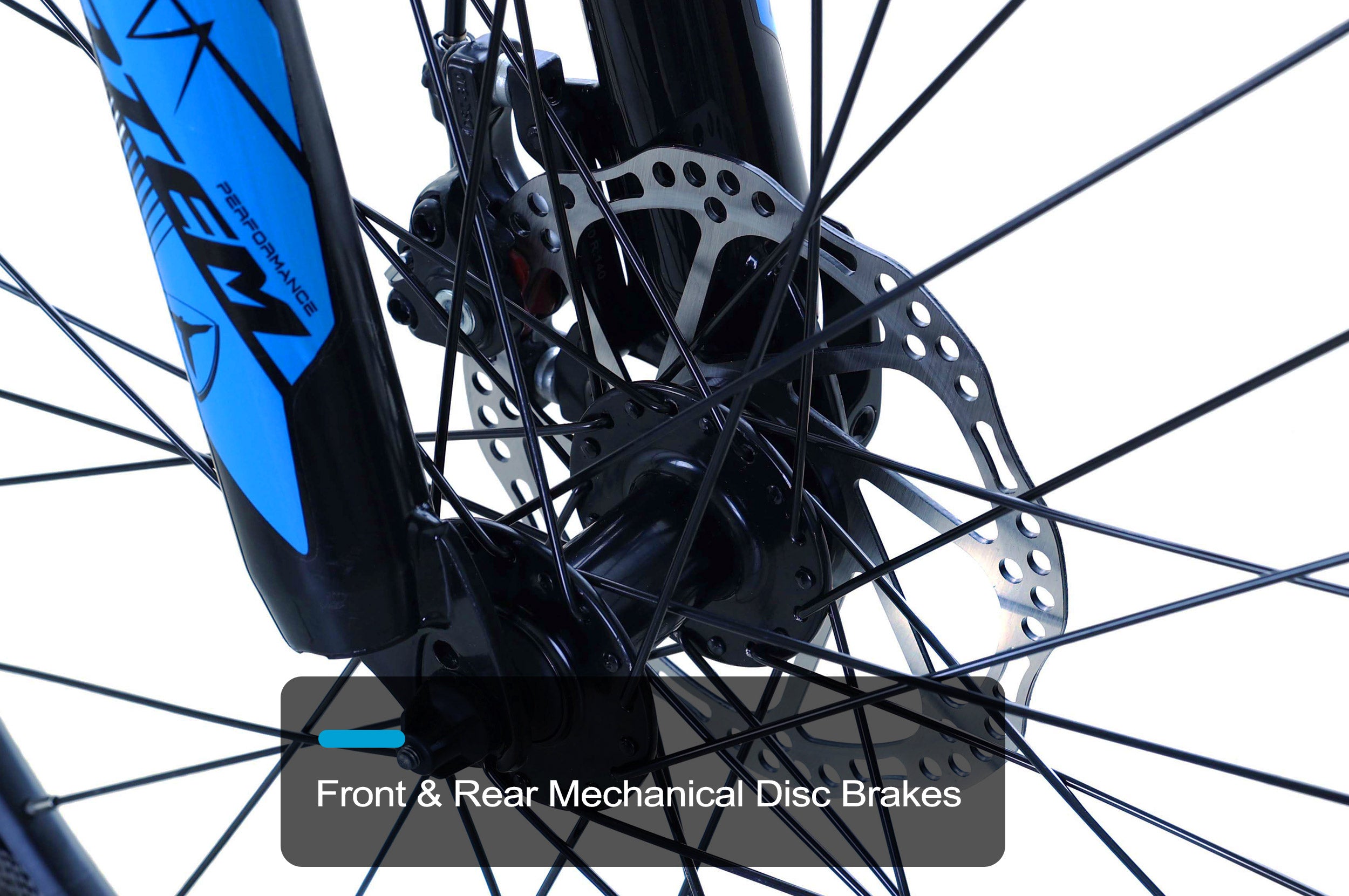

Dual Disc Brake

Dual Mechanical disc brakes provide responsive stopping power in all conditions, with reduced wear and tear, and better safety.

IMG_5897.WEBP__PID:121ec78c-1a7c-41f3-9ec4-bcb6a0c02e7d

Professional MTB Tires

CST mountain bike tires feature anti-skid, wear-resistant, and strong grip qualities, making out of safe and environmentally friendly raw materials.

Each Totem E-bike has a level 0 safety device that puts the entire bike in a "pedal only" mode with no power. Motorized power only activates by pedaling when the rider increases the pedal assist level.
Brake Sensor – Disengages the motor when brakes are applied, providing an intuitive cycling experience for all riders
Overheat Protection – Disengages the motor to protect the drive system when sustained temperatures exceed 110 degrees Fahrenheit
Throttle Protection – Momentarily disengages the throttle after 60 seconds of continuous use to protect the drive system from sustained high current output
Battery Management System (BMS) + Over-current Protection – The battery’s internal chip is designed to self-regulate “sleep mode” when not in use for extended periods, prolonging usable battery life and protecting against over-current events
Self-diagnosing Error Code messages – smart controller diagnoses drive system status and displays a numbered code to pinpoint areas for troubleshooting
